MCC PANEL



A motor control center (MCC) is an assembly of one or more enclosed sections having a common power bus and principally containing motor control units i.e. simply physical groupings of combination starters in one assembly. A motor control center can include variable frequency drives, programmable controllers, and metering and may also be the electrical service entrance for the building.

A motor control center (MCC) is an assembly to control some or all electric motors in a central location. It consists of multiple enclosed sections having a common power bus and with each section containing a combination starter, which in turn consists of motor starter, fuses or circuit breaker, and power disconnect.

TYPE OF MCC PANELS:

• COMPARTMENTAL TYPE
• NON COMPARTMENTAL TYPE
•      INTELIGENT MOTOR CONTROL CENTER

Application Area’s

• Steel plant
• Chemical Industries
• Sugar Industries
• Cement Industries
• Dairy Plants

We UD POWER SOLUTIONS provides strive to provide the best quality by adding our own improvements without affecting the cost as per the requirements of the panel.

Product Testing



APFC/RTPFC PANEL



APFC Panels means Automatic Power Factor Correction Panels.

These are available in two designs -

• 1. With Contactor base circuit.
• 2. With Thyristor switches.

Air ventilation for Capacitor banks, Auto Manual facility. We designed to control smallest capacitor upto 2 kvar.

Owing to their energy efficient design, longer serving life, high performance and low maintenance, these APFC panels offered by us are highly demanded in the market. These offered APFC Panels can be customized in accordance with the requirements and demands provided by the customers.

Our presented APFC Panels are best in working and finely prepared by using best components and other accessories. These panels are light in weight and easier to install without any damage. Durable in frame, these panels are damage resistant and do not get damaged due to longer life working and other effects.

Application Area’s

• Steel plant
• Chemical Industries
• Sugar Industries
• Cement Industries
• Dairy Plants

We UD POWER SOLUTIONS manufacture optimum quality APFC Panels with high accuracy.

Product Testing

POWER DISTRIBUTION PANEL



PDB is a distribution board (also known as panelboard, breaker panel, or electric panel) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.



A distribution board is the main electrical supply system for any commercial or residential entity. The main cable comes into the distribution board and then via breakers get distributed in the secondary circuits such as lights and plugs.

Application Area’s

• Steel plant
• Chemical Industries
• Sugar Industries
• Cement Industries
• Dairy Plants

We UD POWER SOLUTIONS manufacture PDB panels with asthetically good in view.

Product Testing

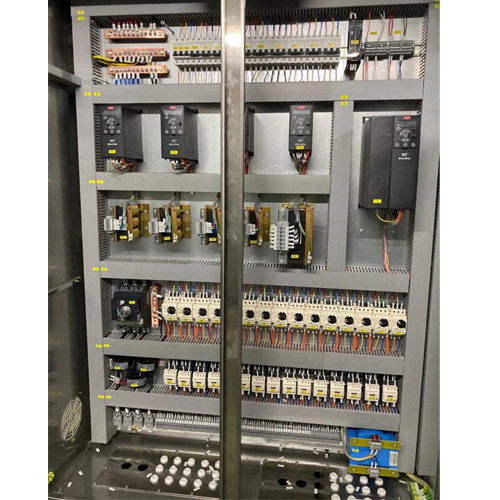

VFD PANEL



A variable frequency drive (VFD) is a type of motor controller that drives an electric motor by varying the frequency and voltage of its power supply. The VFD also has the capacity to control ramp-up and ramp-down of the motor during start or stop, respectively.

The most common uses of a VFD are for control of fans, pumps and compressors, and these applications account for 75% of all drives operating globally. Soft starters and across-the-line contactors are other, less sophisticated types of motor controllers.

Saves energy and cost: A VFD regulating a pump motor that usually runs less than full speed can cut down energy consumption over a motor running at constant speed for the same period. In addition, it eliminates the need for mechanical drive components, which also helps reduce overall costs. Variable frequency drives (VFDs) can help even small organizations realize energy savings.

Cost and size of VFDs have decreased; performance has improved.

Other benefits of VFDs include less line disturbances, less maintenance, and longer motor life.

Six primary benefits of VFDs are :

• Keeps starting current in control.
• Reduces power line disturbances.
• Demands lower power on start.
• Helps in controlling operating speed and acceleration.
• Limits and adjusts torque.
• Saves energy and cost.

We UD POWER SOLUTIONS are the best VFD panel providers with satisfactory commissioning.

Product Testing
